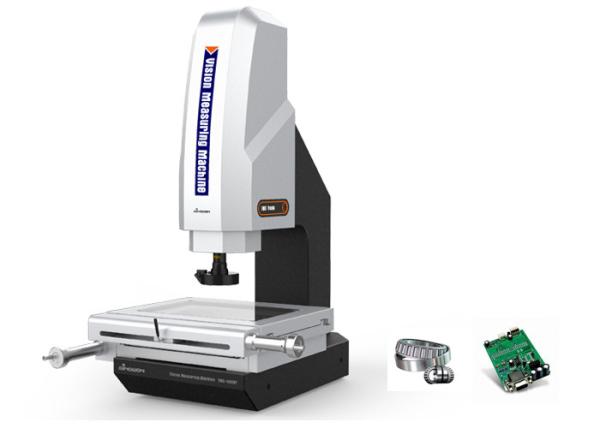

High-Accuracy Video Measuring System Fast Servo Motor Control System

Name: HighAccuracy Video Measuring System Fast Servo Motor Control System
Brand: Sinowon
Price: 1 USD

Brand Name : Sinowon

Model Number : iMS-2515F

Certification : CE

Place of Origin : China

MOQ : 1 Set

Payment Terms : T/T In Advance

Supply Ability : 100 sets per month

Delivery Time : 20 work days

Packaging Details : plywood

Metal Stage : 408x308mm

Glass Stage : 306x198mm

X/Y-axis Stroke : 250x150mm

X/Y-axis Accuracy : ≤3+L/200(um)

Z-axis Stroke : High-precision linear guide

X/Y/Z-axis Stroke : 0.0005mm

Contact Now

High-Accuracy Optical Measuring Machine Servo Motor Control System

Application:

It is widely used in measuring mobile accessories, home appliances, machine parts, precision clamps, plastics, hardware, products related to computer, precision stamping parts, etc.

Product Characteristic:

With programmable formula surface 3-ring 8-division LED Cold Illumination and contour LED parallel illumination and internal intelligent light adjustment, it can automatic control the brightness in the 3-ring 8-division;
Z-axis equipped with high accuracy linear guide and servo motor control system, realize auto focus measurement, and eliminate the human focus error, enhance measurement accuracy and stability;
Powerful function iMeasuring2.1 2.5F Measuring Software, highly enhance the quality control;
Optional FexQMS Measuring Data Analysis and Real-time monitoring software which enhance program control and reduce material consumption.

Technical Specification:

Mode	iMS-2515F
Code#	521-150F
Metal Stage	408x308mm
Glass Stage	306x198mm
X/Y-axis Stroke	250x150mm
Z-axis Stroke	High-precision linear guide and servo motor control system , working travel 200mm
X/Y/Z-axis Stroke	0.0005mm
X/Y-axis Accuracy	≤3+L/200(um)
Repeatability	3um
Base and Pillar	High Accuracy Jinan Qing Marble
Illumination System(Software Adjustment)	Surface: Stepless Adjustable 3-ring 8-division LED Cold Illumination
	Contour: LED Parallel Illumination
	LED Laser Navigation Lights
CCD Camera	High Resolution 700TV Color CCD Camera
Zoom lens	6.5:1 High Resolution Detented Zoom Lens
Zoom lens	Magnification:0.7X~4.5X；Image Magnification:24.5X~156X

Standard Delivery:

Product Name	Code#	Product Name	Code#
2.5D Measuring Software	IM2.2	Video Capture Card	527-130
Contour LED Parallel Illumination	425-100	DELL PC System	581-960
Surface 3R/8D LED Illumination	425-130	AV Video Cable	581-940
Laser Positioning System	581-330	RS232 Data Cable	581-930
Detented Zoom Lens	421-100	Optical Calibration Block	581-800
HD700TVL Color Camera	484-130	Operation Manual	/
